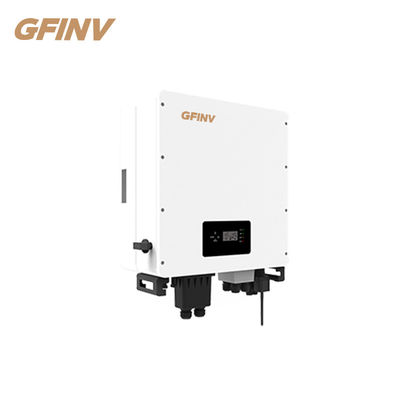

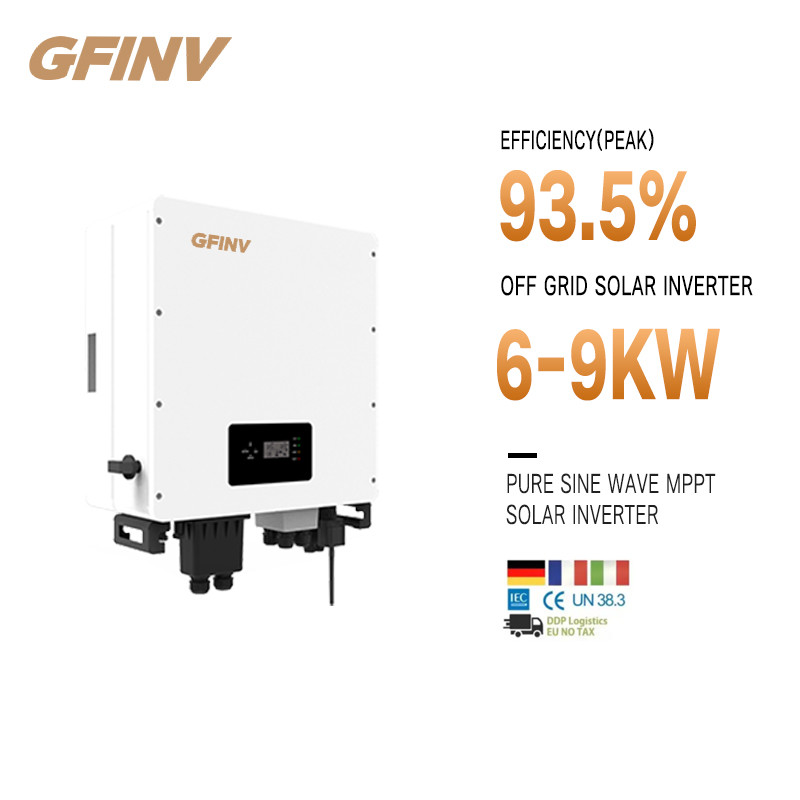

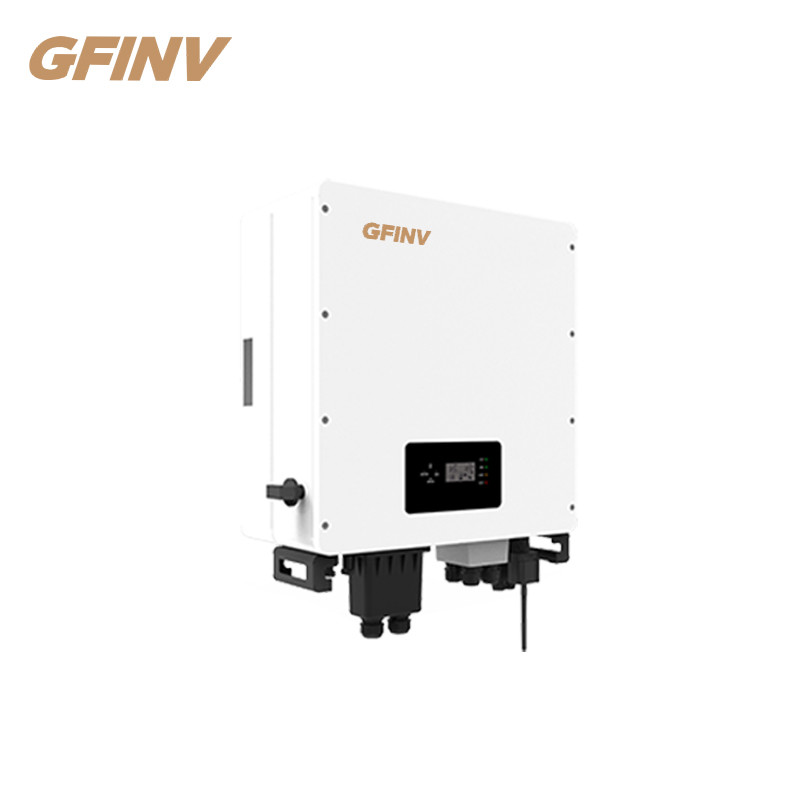

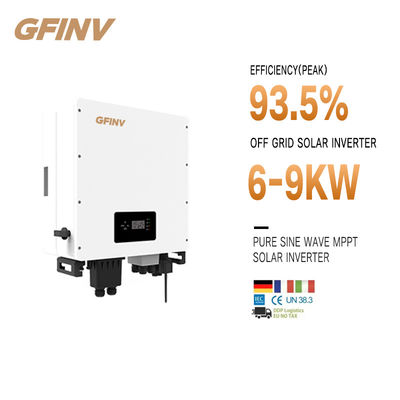

IP65 8kw Solar Inverter 3 Phase Solar Hybrid Inverter With Dry Contact
| Place of Origin | Shenzhen |
|---|---|
| Brand Name | GFINV |
| Certification | CE,EMC,LVD,FC,TUV,ISO |
| Model Number | GF-HSI |
| Minimum Order Quantity | 10 |
| Price | 1007.3USD |
| Delivery Time | 5-8 Days |
| Payment Terms | T/T |
Product Details
| MaxPower | 9600 | Max DC Voltage | 180-900 |
|---|---|---|---|
| MPPT Voltage Range | 16/16 | Max Input Current Of Single MPPT | 2/1 |
| Communication Interface | RS485/Wi-Fi/GPRS | Cooling Mode | Air Cooling |
| Display | LCD Display | Efficiency | 98% |
| Input Voltage | DC380V | MPPT Range | 30V-100V |
| Operating Temperature | -25℃~+60℃ | Output Voltage | AC220V |
| Power Rating | 6kW-20kW | Product Name | On Grid Solar Inverters |
| Protection Level | IP65 | Size | 600*400*200mm |
| Warranty | 5 Years | Weight | 25kg |
| Highlight | IP65 8kw Solar Inverter,IP65 3 Phase Solar Hybrid Inverter,8kw Solar Inverter with Dry Contact |
||
Product Description
3 Phase /Single Hybrid Solar Inverter 8Kw 3 Phase Solar Inverter Hybrid Inverters With Dry Contact
Product Introduction:
Introducing our three-phase inverter, with a power range of 6 kW to 10 kW, designed to deliver efficient and reliable performance for a variety of energy applications. This advanced inverter combines innovative features to enhance flexibility, safety, and usability, making it an ideal solution for your power needs.
Key Features:
Flexible Rate Tariff: Take advantage of cost savings by charging from the grid during off-peak hours when energy prices are lower. Conversely, discharge power during peak times when energy costs are higher. This feature allows you to optimize your energy consumption and reduce expenses.
Safety Features: Our inverter prioritizes safety with both physical and electrical dual isolation. It integrates AFCI (Arc Fault Circuit Interrupter) functionality to provide comprehensive protection against AC overcurrent, AC overvoltage, and over-temperature conditions. Additionally, it boasts an IP65 protection grade, ensuring durability and performance even in challenging environments.
Multiple Working Modes: The inverter offers four distinct working modes to suit various requirements:
a. Self Use: Utilize the generated power for self-consumption, reducing reliance on the grid and maximizing self-sufficiency.
b. Time of Use: Program the inverter to operate at specific times based on energy demands or grid requirements, effectively aligning energy generation and usage.
c. Backup Power: Serve as a backup power source during grid outages, providing uninterrupted electricity supply for critical loads. d. Grid Priority: Prioritize grid power supply while utilizing the inverter's capabilities to supplement or optimize energy usage.
Quick Backup: Instantly provide backup power to essential loads within a transfer time of less than 10 ms, ensuring uninterrupted operation and safeguarding sensitive equipment.
Application Scenarios:
This three-phase inverter is well-suited for a wide range of applications, including but not limited to:
Residential solar energy systems: Seamlessly integrate the inverter with your home's solar power setup, maximizing self-consumption and reducing dependence on the grid.
Commercial and industrial environments: Power factories, warehouses, or office buildings with clean and sustainable energy, while taking advantage of flexible rate tariffs to minimize operational costs.
Off-grid installations: Utilize the inverter as a reliable and efficient power source in areas without access to the grid, such as remote locations or off-grid communities.
With its comprehensive features and versatile application possibilities, our three-phase inverter is an excellent choice for individuals and businesses seeking efficient and adaptable energy management solutions.
Our Services and Support:
1. Photovoltaic Energy Storage System Installation:
- We specialize in building efficient and reliable photovoltaic energy storage systems.
- Our customized solutions cater to residential, commercial, and industrial applications, meeting specific customer needs.
2. Expansion of Energy Storage Systems:
- Planning to scale up your existing energy storage system? We offer professional upgrade and expansion services.
- Our team of engineers ensures seamless integration between new and existing equipment, optimizing overall system performance.
3. Upgrading Existing Energy Storage Systems:
- If your current energy storage system requires an upgrade, we provide comprehensive solutions.
- Through evaluation, we recommend upgrades based on the latest technology and industry standards, enhancing system efficiency.
Quality Assurance Statement:
1. Premium Cell Quality:
- We ensure the use of A-grade battery cells in our products.
-The brands we cooperate with are EVE, SVOLT, BYD, Gotion,etc. We welcome your cell customization.
2. Direct Communication:
- We emphasize direct communication between customers and our engineers during the customization process.
3. Quality Guarantee:
- We offer a signed quality guarantee agreement to assure customers of receiving satisfactory products.
- Our stringent quality control measures ensure that every item meets or exceeds customer expectations.
FAQ:
Q: Where is this product made?
A: This product is made in China.
Q: What certifications does this product have?
A: This product is certified with CE, ROHS,UN38.3,MSDS.
Q: What is the minimum order quantity?
A: The minimum order quantity is 10.
Q: What is the packaging?
A: The packaging is 430*215*640mm 1pcs/CTN.
Q: How long is the delivery time?
A: The delivery time is about 30days.
Q: What are the payment terms?
A: The payment terms is T/T.
Q: What is the supply ability?
A: The supply ability is 10000pcs/month.
| Model | GF-HSI-60-E | GF-HSI-100-E | |
| Rated Power | 6000W | 9600W | |
| Battery type | Lithium-ion, Lead-acid | Lithium-ion, Lead-acid | |
| Nominal battery voltage | 48V | 48V | |
| Battery voltage range | 40-58V | 40-58V | |
| Battery capacity | 50-2000Ah | ||
| Maximum charging / discharging power |
6000W | ||
| Maximum charging current | 100A | ||
| Maximum discharging current | 110A | ||
| Depth of discharge | 0-90% DOD adjustable(Lithium-ion) 0-50% DOD adjustable(Lead-acid) |
||
| Charging curve | BMS(Lithium-ion) 3-Stage adaptive with maintenance(Lead-acid) |
||
| Communication | CAN(RS485) | ||
| Recommended Max. PV input power(Wp) | 9600Wp | 127000 | |
| Max. DC power for single MPPT | 4800W | 10000 | |
| Max. input voltage | 58V | 58V | |
| Rated input voltage | 36V | 36V | |
| Start-up voltage | 100V | 100V | |
| MPPT operating voltage range | 90-500V | ||
| Full power MPPT voltage range(V) | 300-520 | ||
| Number of MPP trackers | 2 | 2 | |
| Max. input current per MPPT | 13A | ||
| Max. input short circuit current per MPPT | 18A | ||
| MPPT efficiency | 99.90% | ||
| European efficiency ofsolar inverter | 97.50% | ||
| Max efficiency of solar inverter | 98.00% | ||
| Max. charging efficiency of battery | 94.60% | ||
| Max. discharging efficiency of battery |
94.60% | ||
| Max. AC power from utility grid | 12000VA | ||
| Max. AC current output to utility grid | 27.3A | ||
| Max. AC current from utility grid | 54.6A | ||
| Nominal grid voltage | L/N/PE, 220Vac, 230Vac,240Vac | ||
| Grid voltage range | 180Vac~276Vac(According to local standard) | 180Vac~276Vac(According to local standard) | |
| Nominal frequency | 50/60Hz | 50/60Hz | |
| Grid Frequency range | 45Hz~55Hz/55Hz~65Hz | 45Hz~55Hz/55Hz~65Hz | |
| Power factor | 1 default (adjustable+/-0.8) | 1 default (adjustable+/-0.8) | |
| Output THDi (@Nominal output) | <3% | <3% | |
| Peak output power,Duration | 7200VA,60s | 7200VA,60s | |
| Max. output current | 27.3A | 27.3A | |
| Nominal voltage,Frequency | L/N/PE, 220V/230V/240V 50/60Hz | L/N/PE, 220V/230V/240V 50/60Hz | |
| THDv (@Liner load) | <3% | <3% | |
| Switch time | 10ms(default) | 10ms(default) | |
| Display | |||
| Communication | Bluetooth / RS485 / WIFI / GPRS (optional) | Bluetooth / RS485 / WIFI / GPRS (optional) | |
| Parallel operation | YES | YES | |
| Warranty | 5 years or more | 5 years or more | |
| Grid standards | VDE-AR-N 4105, VDE V 0126-1-1, AS/NZS 4777, CEI 0-21, G98/G99, TR321,TR322, EN 50438/EN50549, UTE C15-712-1, NRS 097-2-1, UNE 206 007-1 | VDE-AR-N 4105, VDE V 0126-1-1, AS/NZS 4777, CEI 0-21, G98/G99, TR321,TR322, EN 50438/EN50549, UTE C15-712-1, NRS 097-2-1, UNE 206 007-1 | |
| Safety standards | IEC 62109-1/2, IEC 62040-1, IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30) | IEC 62109-1/2, IEC 62040-1, IEC 62116, IEC 61727, IEC 61683, IEC 60068(1,2,14,30) | |
| EMC | EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3,EN 61000-3-11, EN 61000-3-12 |
EN 61000-6-2, EN 61000-6-3, EN 61000-3-2, EN 61000-3-3,EN 61000-3-11, EN 61000-3-12 |
|
| Communication Interface | USB , RS232 ,RS485,WIFI ,CAN, Bluetooth | ||
| Humidity | 5% to 95% Relative Humidity(Non-condensing) | ||
| OPERATING ENVIRONMENT | ‘-25°℃ to 60°℃ | ||
| Storage Temperature | ‘-15℃ to 60℃ | ||
