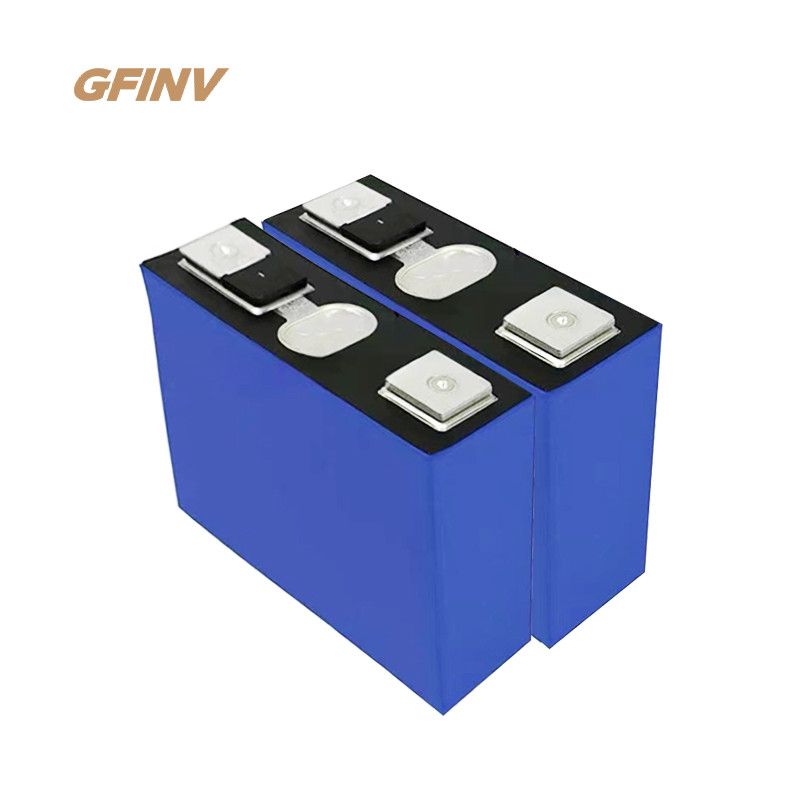

3.2V 106Ah LiFePO4 Lithium Ion Battery Cells High Energy Density

Product Description:

A 3.2V 106Ah LiFePO4 cell is a type of lithium iron phosphate battery that operates at a voltage of 3.2 volts and has a capacity of 106 ampere-hours (Ah). LiFePO4 cells are known for their high energy density, long cycle life, and improved safety compared to other lithium-ion battery chemistries.

This particular cell is commonly used in various applications such as electric vehicles, renewable energy storage systems, and portable electronics. With its high capacity, it can provide a substantial amount of power and enable longer runtime for devices or vehicles.

The LiFePO4 chemistry offers stability, low risk of thermal runaway, and resistance to overcharging and overheating. These cells are also less prone to degradation, allowing for a longer lifespan and increased reliability. Additionally, they have a wide operating temperature range, making them suitable for both extreme cold and hot environments.

In summary, the 3.2V 106Ah LiFePO4 cell is a reliable and efficient lithium iron phosphate battery that provides high capacity, enhanced safety features, and excellent performance in various applications requiring long-lasting power.

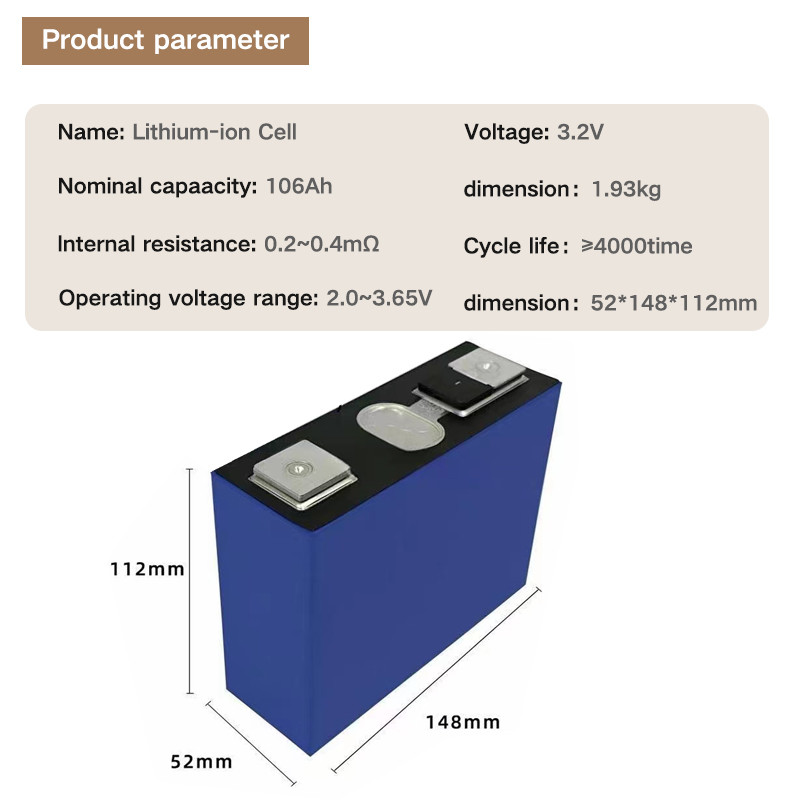

Technical Parameters:

The LiFePO4 cell is a kind of electrochemical device that provides reliable energy storage. For this cell, the capacity is 106 Ah, and the energy is 341.3 Wh (1/3C), or 332.8 Wh (1.0C). The specific energy is correspondingly 176.8 Wh/Kg (1/3C) or 172.4 Wh/Kg (1.0C). The operating voltage permeates from 2.0 to 3.65 V, and its ACR numbers (at 1KHz) range from 0.2 to 0.4, with its ACR mean being 0.25 + 0.05mΩ. When the cell is discharged, the output voltage is 3.2 V, and the output capacity location remains at 106 Ah. In terms of temperature, the operational charging environment falls between -20°C and 55°C, while the discharging environment lies between -30°C and 60°C. As for life cycle, the full discharge capability should satisfy the standard of 80%SOH and is expected to have a cycle life of at least 4000. For its power, the minimum value should reach 1350W. In addition, the cell itself weighs 1.93KG, and the cell dimension is 1173*1483*523mm.

Applications:

Customization:

• Brand Name: GF
• Model Number: LFP-Cell
• Place of Origin: Shenzhen, China
• Cycle life: 4000times
• Dimension: 52*148*112mm
• Nominal Capacity: 106Ah
• Rated Voltage: 3.2V
• Operating temperature range: -20-60

GF LFP-Cell Lithium Ion Battery Cells provide a reliable, high-capacity 106Ah solution for your applications. The cell offers an impressive cycle life of 4000times, with a nominal voltage of 3.2V. The operating temperature range is -20-60. With a dimension of 52*148*112mm, GF LFP-Cell Lithium Ion Battery Cells are designed to meet your needs for power and performance.

Support and Services:

Packing and Shipping:

Lithium Ion Battery Cells must be packaged and shipped in accordance with the UN Manual of Tests and Criteria and IATA Dangerous Goods Regulations. To ensure the safety of these lithium ion cells during transport, they must be placed in appropriate packaging, with necessary markings and declarations.

The packaging must be designed to protect the cells from damage and contamination. It must also be able to contain any leakage or reaction in the event of a thermal runaway. All of the cells must be properly labeled and the package must be marked with the appropriate transport hazard class and UN number.

The package must be accompanied by a shipping document that includes a declaration of dangerous goods, as well as the shipper's name and address. The package should also be secured with tamper-evident seals to ensure the safety of the lithium ion cells during transport.
