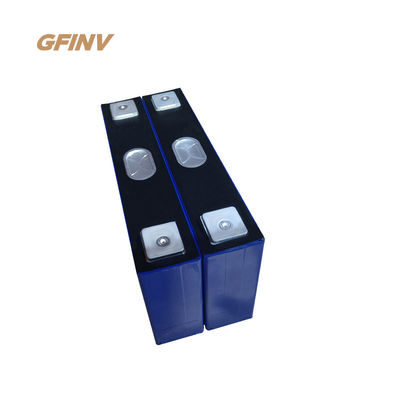

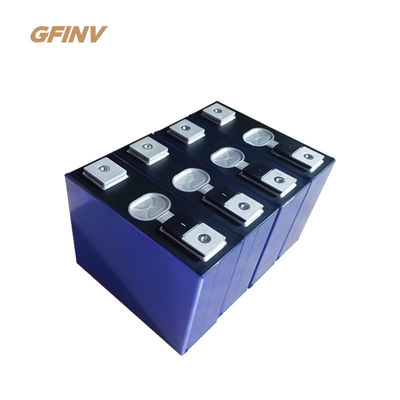

Grade A Lfp Prismatic Cells LiFePO4 3.2 V Lithium Iron Phosphate Battery 106Ah

Product Description:

This particular cell is an advanced and well-known type of lithium iron phosphate battery. It operates at a voltage of 3.2 volts and has a capacity of 106 ampere-hours (Ah). Compared to other lithium-ion chemistries, LiFePO4 cells boast a high energy density, a long cycle life, and a higher level of safety. It is commonly used for electric vehicles, renewable energy storage systems, and portable devices because it can offer considerable power and long-lasting runtime.

The unique LiFePO4 chemistry imparts stability, low thermal runaway risk, and resistance to overcharging and overheating. Additionally, LiFePO4 cells are less prone to degradation, resulting in a longer lifespan and greater reliability. On top of all that, a wide operating temperature range allows it to work in both severe hot and cold climates.

All in all, the 3.2V 106Ah LiFePO4 cell is a powerful, safe, and efficient battery that works best in applications where long-lasting power is important. It is perfect for those who need reliable energy with exceptional performance.

Technical Parameters:

Capacity: 106 Ah

Energy:

• ≥341.3 Wh (1/3C)
• ≥332.8Wh (1.0C)

Specific Energy:

• ≥176.8Wh/Kg (1/3C)
• 172.4 Wh/Kg (1.0C)

Operating Voltage: 2.0 ~ 3.65 V

ACR(1KHz): 0.2~0.4mΩ

ACR mean(1KHz): 0.25+0.05mΩ

Outgoing Voltage: 3.2V

Outgoing capacity: ≥106 Ah

Operating temperature (Charge): -20°C-55°C

Operating temperature (Discharge): -30°C-60°C

Cycle life: ≥4000(80%SOH)

Discharge Power: ≥1350W

Cell weight: 1.93KG

Cell dimension: 1173*1483*523mm

Applications:

The 3.2V 106Ah LiFePO4 cell offers a number of advantageous characteristics, making it a popular power source across various technologies and industries. Its long-lasting energy capabilities, high capacity, stability, and resistance to extreme conditions are some of its most sought-after traits.

The LiFePO4 cell's properties can be seen in a wide range of applications, and here are some of the common uses that utilize these benefits:

• Electric Vehicles: The high-capacity and reliable nature of LiFePO4 cells make for an ideal choice in terms of powering electric vehicles. Its sustained energy output allows for long-range travel capabilities.
• Renewable Energy Storage: Because of the LiFePO4 cell's ability to store large amounts of energy, it is employed in renewable energy storage systems, such as solar or wind power installations. These cells enable to capture and store excess energy during peak periods for use during lulls.
• Portable Electronics: LiFePO4 batteries can improve the usability of electronic gadgets like laptops, tablets, or smartphones by offering extended usage time. This is enabled by the cells' high energy density and longer runtime.
• Uninterruptible Power Supplies: The reliability and durability of LiFePO4 cells make them suitable for Uninterruptible Power Supplies, allowing for continuous power supply in the event of outages. This is used in industries such as data centers, telecommunications, and healthcare.
• Marine/RV Power Systems: LiFePO4 cells are employed in marine and recreational vehicle power systems due to their high energy capacity and resistance to extreme temperatures. This allows for efficient energy storage and enhanced usage time.
• Off-Grid Power Solutions: Remote locations or grid-inaccessible areas depend heavily on off-grid power solutions, where LiFePO4 cells provide reliable, sustainable energy. This is found in applications such as remote communication stations and rural electrification projects.

In conclusion, the 3.2V 106Ah LiFePO4 cell is advantageous in a multitude of scenarios, and securing dependable power solutions across various industries due to its characteristics of high power density, durability, and resilience to environmental changes.

Customization:

Our Lithium Ion Battery Cells are of the highest quality and are available with a range of customized options to suit your specific needs. The brand name of these cells is GF and the model number is LFP-Cell. They are manufactured in Shenzhen, China, and have a dimension of 52*148*112mm and a weight of 1.93KG. The operating voltage range is 2.0V-3.65V and the operating temperature range is -20-60. The nominal capacity of these cells is 106Ah.

These Lithium Ion cells are designed to provide long-lasting and reliable power with a nominal voltage of 3.2V and a nominal capacity of 106Ah. Our cells are designed to be safe and reliable with strict quality control measures in place. We guarantee that you will be completely satisfied with the performance of these cells.

Support and Services:

We provide technical support and services for Lithium Ion Battery Cells. Our team of experts will help you find the best solution for your needs, and provide you with the resources and technical assistance necessary to make sure that your battery cells are working properly.

We offer a wide range of services, including:

• Testing and evaluation of battery cells
• Inspection and maintenance of battery cells
• Diagnostic and troubleshooting services
• Software and firmware updates
• Product training and support
• Replacement and repair services

If you have any questions or concerns about our services, please do not hesitate to contact us. Our knowledgeable team is always available to answer your questions and help you find the best solution for your battery cell needs.

Packing and Shipping:

To ensure the safe delivery of Lithium Ion Battery Cells, the following packaging and shipping measures should be taken:

• The battery cells should be wrapped in an anti-static material to prevent short-circuiting.
• The battery cells should be packaged in a cardboard box with enough padding to prevent damage from impacts.
• The package should be clearly labeled to indicate that it contains lithium ion battery cells.
• The package should be shipped using a reputable courier service and should be tracked to ensure safe delivery.
• The package should be clearly marked as containing lithium ion battery cells.
